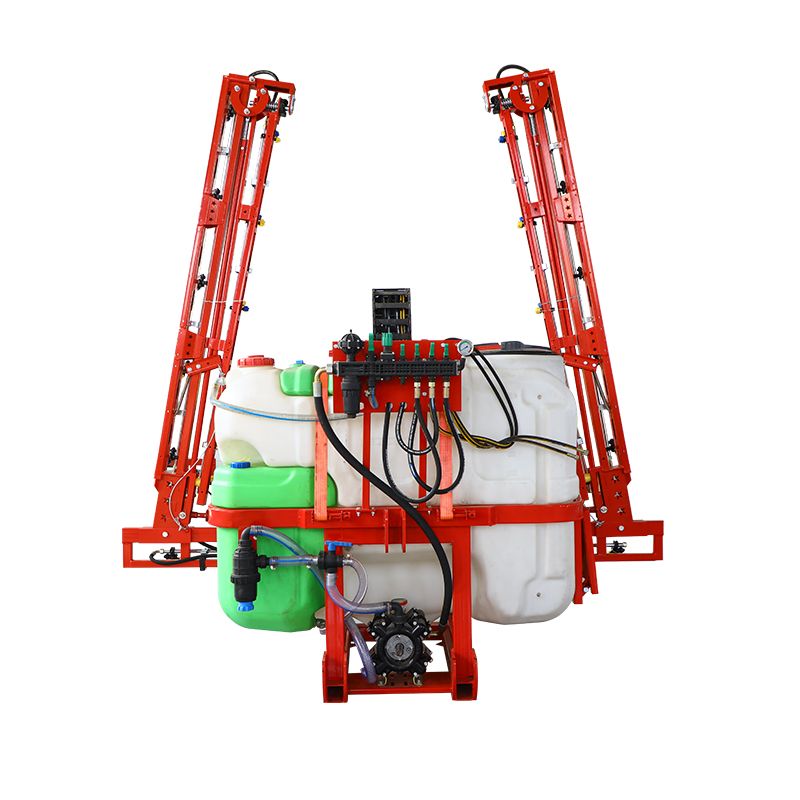

Field Sprayer
Harvester Machinery is a professional Field Sprayer manufacturers and suppliers in China, you can rest assured to wholesale and customized Field Sprayer from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
Since the feild spraying needed, usually the field sprayer in big tank capacity, there are 800L, 1000L, 1200L available.
There are 18M, 22M, 24M working width for selection, so the field sprayer in high working efficient, at least 45 area/H.
There are 18M, 22M, 24M working width for selection, so the field sprayer in high working efficient, at least 45 area/H.
1.The sprayer tank in strong high quality PE material, can in very long service time during the outside working;
2.Four-cylinder diaphragm pump and high-quality sprinkler, so that field sprayer spraying evenly, even plants by spraying, better than artificial spraying effect;
3.Hydraulic boom type, easy to control for the boom open and fold.
4.3 point linkage can matched the suitable horse power tractor.
5.ifferent spray amplitude can be selected three cylinder four cylinder diaphragm pump spray pressure size can be freely selected.
6.The main machine is equipped with a shunt (plastic, aluminum) which can be used to flexibly control the spraying work according to different crop conditions.
2.Four-cylinder diaphragm pump and high-quality sprinkler, so that field sprayer spraying evenly, even plants by spraying, better than artificial spraying effect;
3.Hydraulic boom type, easy to control for the boom open and fold.
4.3 point linkage can matched the suitable horse power tractor.
5.ifferent spray amplitude can be selected three cylinder four cylinder diaphragm pump spray pressure size can be freely selected.
6.The main machine is equipped with a shunt (plastic, aluminum) which can be used to flexibly control the spraying work according to different crop conditions.
Here is the detailed technical specifications of the field sprayer
| Model | Structure |
Dimension (MM) |
Max Capacity (L) |
Matched Power (HP) |
Spray Rod Length (MM) |
Working Pressure (Mpa) |
Rated Flow (L/Min) |
Working Rate (Area/H) |
| 3WPX-400-8 | Mounted Type | 1880*1140*1240 | 400 | ≥40 | 8000 | 0.8-1.0 | 60-80 | 20 |
| 3WPX-500-12 | Mounted Type | 2700*1100*1300 | 500 | ≥40 | 12000 | 0.8-1.0 | 60-80 | 35 |
| 3WPX-600-8 | Mounted Type | 2200*1190*2300 | 600 | ≥50 | 8000 | 0.8-1.0 | 80-100 | 20 |
| 3WPX-600-12 | Mounted Type | 2700*1100*1440 | 600 | ≥50 | 12000 | 0.8-1.0 | 80-100 | 35 |
| 3WPXY-600-12 | Mounted Type | 2700*3300*1400 | 600 | ≥50 | 12000 | 0.8-1.0 | 80-100 | 35 |
| 3WPX-800-12 | Mounted Type | 2700*1140*1500 | 800 | ≥60 | 12000 | 0.8-1.0 | 80-100 | 35 |
| 3WPX-800-18A | Mounted Type | 3000*3000*1500 | 800 | ≥60 | 18000 | 0.8-1.0 | 190 | 45 |
| 3WPXZ-800-18 | Mounted Type | 3100*3100*1800 | 8000 | ≥60 | 18000 | 0.8-1.0 | 190 | 45 |
| 3WPX-1000-12 | Mounted Type | 2700*1000*1530 | 1000 | ≥60 | 12000 | 0.8-1.0 | 80-100 | 35 |
| 3PWX-1000-18 | Mounted Type | 3100*3300*2100 | 1000 | ≥80 | 18000 | 0.8-1.0 | 190 | 45 |
| 3WPX-1200-22 | Mounted Type | 4200*3600*2400 | 1200 | ≥80 | 22000 | 0.8-1.0 | 215 | 55 |
| 3WPX-1200-24 | Mounted Type | 2400*2100*2900 | 1200 | ≥90 | 24000 | 0.8-1.0 | 215 | 55 |
Why choose Harvester Machinery as your supplier.
Harvester has the strong strength of the whole set agricultural machinery, such as the below:
Sprayer series: boom sprayer, orchard sprayer
Spreader series: Granular fertilizer spreader, Organic manure spreader
Hay mower and hay rake;
Plough series: disc plough, disc harrow, rotary tiller.
We have the complete production line and strict quality department, our factory also with more than 20 years history in the manufacturer and market.
No matter for the quality, technical experience, fine after-sale service.
Contact us for more detailes.
Harvester has the strong strength of the whole set agricultural machinery, such as the below:
Sprayer series: boom sprayer, orchard sprayer
Spreader series: Granular fertilizer spreader, Organic manure spreader
Hay mower and hay rake;
Plough series: disc plough, disc harrow, rotary tiller.
We have the complete production line and strict quality department, our factory also with more than 20 years history in the manufacturer and market.
No matter for the quality, technical experience, fine after-sale service.
Contact us for more detailes.
